I am creating R notebooks that contain equations. I am using RStudio 1.2.5033 on Windows 10, R 3.5.1, and rmarkdown 2.1. When my R notebooks are rendered as HTML, MathJax (v2.7.2) uses the "HTML-CSS" output processor to render the equations. But I think that the output from the "CommonHTML" output processor looks better. So I want to include a directive, in my R notebooks, that forces MathJax to use the CommonHTML output processor. How may I do this?

If I were rendering an ordinary R Markdown document with output format html_document, I could solve the problem via the mathjax option in my YAML header. For example, when the following file is rendered to HTML, MathJax will use the CommonHTML output processor:

---
title: "Trouble with MathJax"
output:
  html_document:
    mathjax: "https://cdnjs.cloudflare.com/ajax/libs/mathjax/2.7.5/MathJax.js?config=TeX-AMS_CHTML.js"
    self_contained: false
---

\begin{equation}
  R_3 = \alpha
\end{equation}

But this solution doesn't work well when I change the output format from html_document to html_notebook. In that case, I get output that looks like this:

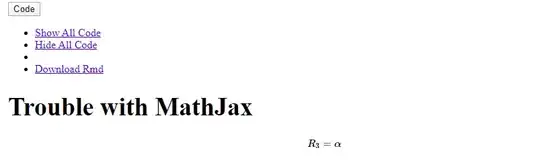

screenshot showing problem with html_notebook rendering

The equation is rendered with CommonHTML, but there is a lot of cruft at the top of the page (note the four bullet points), and the default R Notebook CSS doesn't seem to be implemented.

The problem seems to be general to rendering R notebooks with self_contained: FALSE, as suggested in R notebooks don't render properly when "self_contained" is FALSE because the "files" directory is deleted after rendering. But I can't see a good workaround for that problem.


Dead Ends

The MathJax documentation seems to indicate that I can specify the output processor by adding the jax array in a call to MathJax.Hub.Config(). But when I've done that, my equations are still displayed via the HTML-CSS output processor. Here is a minimal example of an R Markdown document that exhibits the problem:

---
title: 'Trouble with MathJax'
output: html_notebook
---

<script type="text/x-mathjax-config">
  MathJax.Hub.Config({
    jax: ["input/TeX", "output/CommonHTML"],
  });
</script>

\begin{equation}
  R_3 = \alpha
\end{equation}

The call to MathJax.Hub.Config() seems to do nothing here. In both Chrome and Edge, the equation is rendered via HTML-CSS, not CommonHTML. How can I change the rendering to Common HTML?


Related Posts

user697473
  • 2,165
  • 1
  • 20
  • 47

1 Answers1

0

The solution is simply to omit the self_contained line in the YAML header or, equivalently, to set self_contained to true. Here is a minimal example of an R notebook for which the user has chosen the mathjax renderer:

---
title: "Self-contained notebook with non-default Mathjax config"
output:
  html_notebook:
    mathjax: "https://cdnjs.cloudflare.com/ajax/libs/mathjax/2.7.5/MathJax.js?config=TeX-AMS_CHTML.js"
---

$R_3 = 2$.

When the file is rendered to HTML, the equation is displayed with CommonHTML, not with HTML-CSS. And the Mathjax script is contained within the "nb.html" file that is produced.

I was surprised that this works, because the documentation for rmarkdown::html_document() says that "even for self contained documents MathJax is still loaded externally (this is necessary because of its size)." But Section 3.1.8 of the R Markdown book indicates that the restriction applies only when Mathjax is loaded from a local file. So perhaps it shouldn't be a surprise.

Side note: the default Mathjax configuration used by the rmarkdown package is given by rmarkdown:::mathjax_config(). As of rmarkdown v2.1, the function returns "MathJax.js?config=TeX-AMS-MML_HTMLorMML".
