I have the following svg:

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<svg xmlns="http://www.w3.org/2000/svg" width="300" viewBox="-0.5 -0.5 0.5 0.5" version="1.1" height="300">
    <g transform="translate(-0.25,-0.2)" stroke-width="0.001" stroke="#000000" stroke-dasharray="0.0065">
        <line y2="-0.05" y1="0.05" x2="-0.02" x1="0.08"/>
    </g>
</svg>

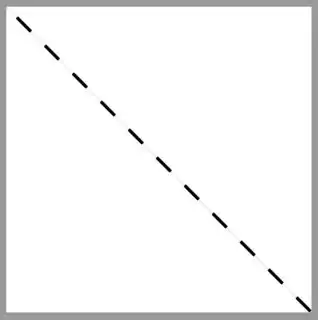

which renders as

on Edge and Firefox. I want to convert this svg to a pdf with LaTeX support, which is why I use inkscape on the WSL:

_INKSCAPE_GC=disable inkscape -D img.svg --export-type="pdf" --export-filename=test.pdf --export-latex

The fist part of the command is due to this bug.

Adobe Acrobat (and the TeXstudio integrated renderer) render the created pdf as

If you look closely, you can see a very thin gray line connecting the dashes. Why is that? How do I remove that?

schade96
  • 119
  • 1
  • 3
  • 7
  • 1
    tested with inkscape 0.92 and 1.0 ([Appimage](https://inkscape.org/de/release/inkscape-master/gnulinux/appimage/)) on Linux Mint Debian Edition 4 does not show the error when rendered with libpoppler-glib8 (evince and others). The same file rendered with Acrobat Reader DS or libpoppler-qt5 (Okular) does show the line. TeXstudio as a qt application unfortunately also uses libpoppler-qt5. – ccprog Sep 02 '20 at 23:02

1 Answers1

1

I just found this question. The problem seemed to be similiar. Indeed, setting fill="none" on the line or the enclosing g solves the problem. That does of course not fully explain the problem, which is why I leave the question open for now. This does however provide a workround if someone encounters the same problem.
