how can I add a newline using logic app or powerautomate?

Question

I'm trying to add newline in String using Logic App. But I got nothing interesting.

That is what I got:

ios-youtube, keepassium-ios, markmcguill-strongbox, Office-Word, microsoft-azureauthenticator, microsoft-scmx, Office-Excel, microsoft-skydrive, Office-Powerpoint, spotify-client, Office-Word, microsoft-onenote, uhhhmagine-flannl, robbie-HomeAssistant, rdc-ios, microsoft-skydrive, skype-teams, miketigas-OnionBrowser, netflix-Netflix, bjoerndemming-aldisued, delius-klasing-bike-app, delius-klasing-tour, heise-ch-magazin, heise-ct-magazin, heise-news4, online-norma, sec-lidl, delius-klasing-ios, robbie-HomeAssistant

I tried these.

and I want the result in this form.



- ios-youtube,
- keepassium-ios,
- markmcguill-strongbox,
- Office-Word,
- microsoft-azureauthenticator,
- microsoft-scmx, Office-Excel,
- microsoft-skydrive,
- Office-Powerpoint,
- spotify-client,
- Office-Word,
- microsoft-onenote,
- uhhhmagine-flannl,
- robbie-HomeAssistant,
- rdc-ios,
- microsoft-skydrive,
- skype-teams,
- miketigas-OnionBrowser,
- netflix-Netflix,
- bjoerndemming-aldisued,
- delius-klasing-bike-app,
- delius-klasing-tour,
- heise-ch-magazin,
- heise-ct-magazin,
- heise-news4,
- online-norma,
- sec-lidl,
- delius-klasing-ios,
- robbie-HomeAssistant

I remember having the issue, but can't remember which logicapp I had it in. Have you tried opening notepad++ enable special characters, then select from the end of one line to beginning of the next line. Then copy using [ctrl]+[c] and paste it into the concat instead of \n. Another one is to also try \r\n instead of just \n. — Monofuse, Jul 20 '23 at 20:30

score 1 · Answer 1 · answered Jul 21 '23 at 00:10

This basic flow shows you a fairly simple approach that should get you over the line.

Flow

The expression in the second step looks like this (noting the hyphen at the start in the image to cater for the very first record) ...

replace(variables('String'), ', ', ',
- ')

... but when I entered it, I put it in like this ...

    replace(variables('String'), ', ', ',\n- ')

To achieve that, you need to go into the Code View and edit the definition and change \\n to \n. Reason being, when you enter it through the designer, it's not what you're after. The code view will looks like this ...

"Initialize_Enhanced_String": {
    "inputs": {
        "variables": [
            {
                "name": "Enhanced String",
                "type": "string",
                "value": "- @{replace(variables('String'), ', ', ',\\n- ')}"
            }
        ]
    },
    "runAfter": {
        "Initialize_String": [
            "Succeeded"
        ]
    },
    "type": "InitializeVariable"
}

... and that isn't correct. Remove the second slash will get you across the line.

Result

score 0 · Accepted Answer · answered Jul 21 '23 at 04:03

I have reproduced in my environment and got expected results as below:

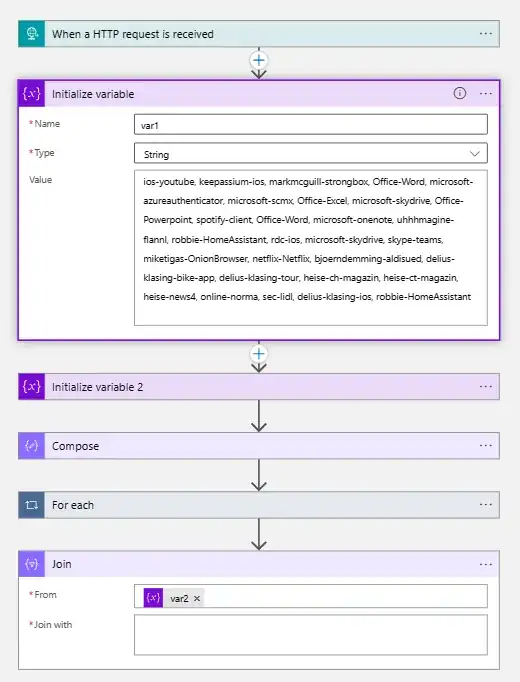

Design:

enter image description here

Then initialized an empty variable and the composed variable 1 with split(variables('var1'),','):

enter image description here

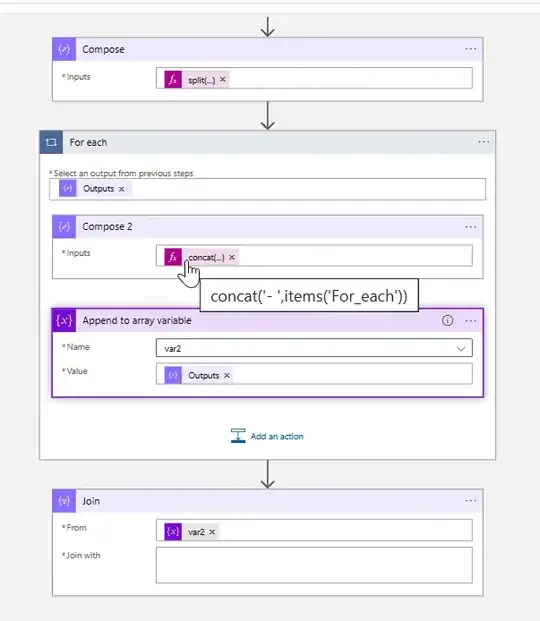

Then in ForEach loop taken input (compose 1 output) then in action used concat in composeconcat('- ',items('For_each')) and then appended var2 and then joined it with new line(just press enter):

enter image description here

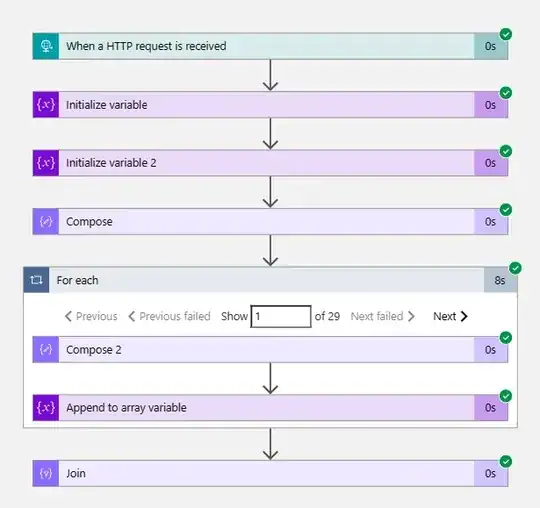

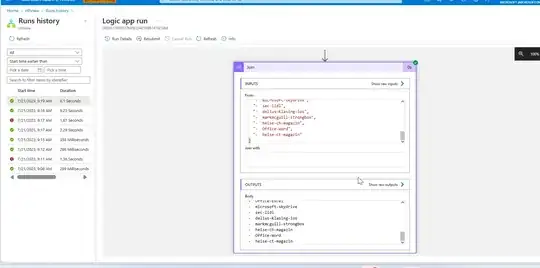

Output:

enter image description here

Codeview:

{
    "definition": {
        "$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
        "actions": {
            "Compose": {
                "inputs": "@split(variables('var1'),',')",
                "runAfter": {
                    "Initialize_variable_2": [
                        "Succeeded"
                    ]
                },
                "type": "Compose"
            },
            "For_each": {
                "actions": {
                    "Append_to_array_variable": {
                        "inputs": {
                            "name": "var2",
                            "value": "@outputs('Compose_2')"
                        },
                        "runAfter": {
                            "Compose_2": [
                                "Succeeded"
                            ]
                        },
                        "type": "AppendToArrayVariable"
                    },
                    "Compose_2": {
                        "inputs": "@concat('- ',items('For_each'))",
                        "runAfter": {},
                        "type": "Compose"
                    }
                },
                "foreach": "@outputs('Compose')",
                "runAfter": {
                    "Compose": [
                        "Succeeded"
                    ]
                },
                "type": "Foreach"
            },
            "Initialize_variable": {
                "inputs": {
                    "variables": [
                        {
                            "name": "var1",
                            "type": "string",
                            "value": "ios-youtube, keepassium-ios, markmcguill-strongbox, Office-Word, microsoft-azureauthenticator, microsoft-scmx, Office-Excel, microsoft-skydrive, Office-Powerpoint, spotify-client, Office-Word, microsoft-onenote, uhhhmagine-flannl, robbie-HomeAssistant, rdc-ios, microsoft-skydrive, skype-teams, miketigas-OnionBrowser, netflix-Netflix, bjoerndemming-aldisued, delius-klasing-bike-app, delius-klasing-tour, heise-ch-magazin, heise-ct-magazin, heise-news4, online-norma, sec-lidl, delius-klasing-ios, robbie-HomeAssistant\n"
                        }
                    ]
                },
                "runAfter": {},
                "type": "InitializeVariable"
            },
            "Initialize_variable_2": {
                "inputs": {
                    "variables": [
                        {
                            "name": "var2",
                            "type": "array"
                        }
                    ]
                },
                "runAfter": {
                    "Initialize_variable": [
                        "Succeeded"
                    ]
                },
                "type": "InitializeVariable"
            },
            "Join": {
                "inputs": {
                    "from": "@variables('var2')",
                    "joinWith": "\n"
                },
                "runAfter": {
                    "For_each": [
                        "Succeeded"
                    ]
                },
                "type": "Join"
            }
        },
        "contentVersion": "1.0.0.0",
        "outputs": {},
        "parameters": {},
        "triggers": {
            "manual": {
                "inputs": {
                    "schema": {}
                },
                "kind": "Http",
                "type": "Request"
            }
        }
    },
    "parameters": {}
}
