JavaFX TabPane Tabs are blurred

Question

I'm trying to make a tabbed application with TabPane. Every tab contains a scroll pane and fxml-loaded node in it.

But tabs are blurry. Before this, it happened in TextArea and I have fixed it with disabling cache. Now, it is not working.

How can I fix this? Thanks.

A Small Example: (It looks like blurry to the my tests.)

HelloApplication.java

    package com.example.demo;

    import javafx.application.Application;
    import javafx.fxml.FXMLLoader;
    import javafx.scene.Scene;
    import javafx.stage.Stage;

    import java.io.IOException;

    public class HelloApplication extends Application {
        @Override
        public void start(Stage stage) throws IOException {
            FXMLLoader fxmlLoader = new FXMLLoader(HelloApplication.class.getResource("demo.fxml"));
            Scene scene = new Scene(fxmlLoader.load(), 320, 240);
            stage.setTitle("Hello!");
            stage.setScene(scene);
            stage.show();
        }

        public static void main(String[] args) {
            launch();
        }
    }



Demo.java

    package com.example.demo;

    import javafx.collections.FXCollections;
    import javafx.fxml.FXML;
    import javafx.fxml.FXMLLoader;
    import javafx.scene.Node;
    import javafx.scene.control.ProgressBar;
    import javafx.scene.control.ScrollPane;
    import javafx.scene.control.Tab;
    import javafx.scene.control.TabPane;
    import javafx.scene.image.ImageView;
    import javafx.scene.layout.AnchorPane;

    import java.io.IOException;
    import java.util.List;

    public class Demo {
        @FXML
        public ProgressBar progress;
        @FXML
        public AnchorPane menu;
        @FXML
        public ImageView head;
        @FXML
        public TabPane tab;

        private final List<Tab> tabs;

        public Demo(){
            tabs = FXCollections.observableArrayList();
        }


        @FXML
        public void initialize(){
            addTab();
        }

        private ScrollPane getScroll(){
            var pane = new ScrollPane();
            pane.setFitToWidth(true);
            return pane;
        }

        public void addTab(){
            var t = new Tab();
            t.setText("test");

            try{
                var loader = new FXMLLoader(getClass().getResource("/com/example/demo/demo2.fxml"));
                var scroll = getScroll();
                Node node = loader.load();
                scroll.setContent(node);
                t.setContent(scroll);
            } catch (IOException ignored) {

            }

            tabs.add(t);
            tab.getTabs().add(t);
        }

    }


demo.fxml

    <?import javafx.scene.control.*?>;
    <?import javafx.scene.layout.*?>;

    <AnchorPane
                xmlns:fx="http://javafx.com/fxml"
                 fx:c
                prefHeight="700.0" prefWidth="900.0" styleClass="main" stylesheets="@demo.css">

        <TabPane fx:id="tab" AnchorPane.topAnchor="10" AnchorPane.leftAnchor="10" AnchorPane.rightAnchor="10" AnchorPane.bottomAnchor="80" maxHeight="Infinity" maxWidth="Infinity"/>
    </AnchorPane>


demo2.fxml

    <?xml version="1.0" encoding="UTF-8"?>;

    <?import javafx.scene.control.*?>;
    <?import javafx.scene.layout.*?>;

    <AnchorPane
                prefHeight="400.0" prefWidth="600.0">
        <Label text="Lorem ipsum dolor sit amet"/>
    </AnchorPane>




demo.css

    .main{
        -fx-background-color: #202020;
    }

    *{
        -fx-cache: false;
    }

Answer 1

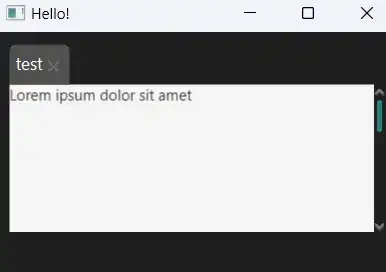

I tried checking your demo on my system (Win 10 x64, JDK 17, FX 21) and it works perfectly well without any issue (as below).

However, I suspect this might be related to subpixel rendering issue. Again saying I SUSPECT only. To check that, I slightly moved the tabPane by .5 px and when ran the code, I can see the blurred text (as below).

@FXML
public void initialize(){
    addTab();
    tab.setTranslateX(.5);
    tab.setTranslateY(.5);
}

Usually I encounter this kind of blur related issues mostly on Path rendering and to fix it, I adjust the Path by .5 px.

So I am not sure whether this approach will work for you as well or not, but can you try adjusting the tabPane position by .5px as shown in above code, and see if it is fixing the issue?

If it works, then assume that THIS IS NOT A SOLUTION, BUT A TEMPORARY FIX.
