Google Pixel 7a Screen Replacement

Written By: Clay Eickemeyer

Comments: 25

Difficulty

Moderate

Steps

Time Required

1 - 3 hours

Introduction

This repair guide was authored by the iFixit staff and hasn’t been endorsed by Google. Learn more about our repair guides here.

Follow this guide to remove or replace a broken or malfunctioning screen on your Google Pixel 7a.

To calibrate the display’s fingerprint reader, follow this guide. Genuine Google replacement screens come with the fingerprint reader already attached. If your replacement screen doesn’t have a pre-installed fingerprint reader, you’ll need to transfer the original fingerprint reader to your new screen and recalibrate it to retain functionality.

You'll need replacement screen adhesive in order to complete this repair.

Note: Any repair can compromise the water resistance of your phone. Retaining water resistance after the repair will depend on how well you reapply the adhesive.

Tools

Parts

Step 1

Allow your battery to drain below 25% before starting this repair. A charged lithium-ion battery is a potential safety hazard.
Unplug any cables from your phone and fully power it down.

Step 2

Glass shards can complicate disassembly—or worse, cause injury. If your phone has a cracked screen, follow these steps:

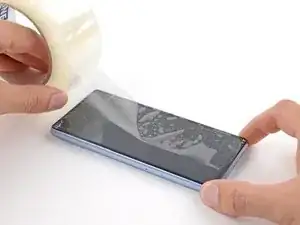

Apply overlapping strips of packing tape to the cracked glass until the whole screen is covered.
Only cover the glass itself—don't stick any tape to the frame.
Wear safety glasses to protect your eyes from any glass shaken free during the repair.

Step 3

The screen is strongly adhered to the frame, has no clips, and resists flexing. It requires significant heat to soften the adhesive underneath.
Use a hair dryer, heat gun, or hot plate to heat the top edge of the screen until it's almost too hot to touch.
Be careful not to overheat the phone—the battery and plastic components are susceptible to heat damage. Stop heating if the frame becomes too hot to touch.

Step 4

Inserting an opening pick is very difficult. Be patient and reheat the screen at any point if it feels stuck.

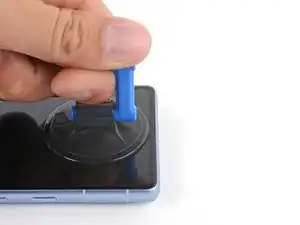

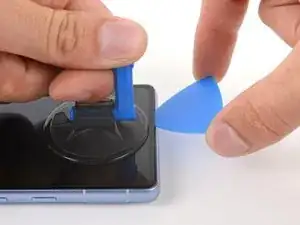

Apply a suction handle to the center of the top edge of the screen.
If you can't apply a suction handle to a broken or uneven screen, try folding a strong piece of tape into a handle.
Don't insert your pick deeper than 2 mm, as you risk damaging the front-facing camera.
Pull up on the suction handle with a strong, steady force.

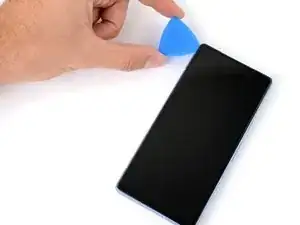

Insert the tip of an opening pick into the left side of the earpiece speaker cutout.
Firmly press the pick into the cutout and lower it flat to the screen until it slides under the glass.
If your pick is too thick to slide under the glass, try a thinner object like the flat edge of a Jimmy.

I was replacing a shattered screen and none of the methods worked:

1. I couldn't get the suction cup to seal against the screen

2. None of the tapes I used (packaging, duct, & gorilla) would adhere to the screen

I ended up using a craft knife to pry open the seal. The opening picks worked great on the non-shattered portions of the screen. This step took me a few hours to troubleshoot

Parker Kincaid -

I second Parker's comment, if your screen is badly shattered like mine, a craft knife does the trick. You'll scratch the edge of the frame, but there's no avoiding that. Don't be scared to crack the screen more with the knife, you can take if off shard by shard if you have to. At some point you'll have enough leverage to remove the display part as one big piece and then just scrape off any leftover glass and adhesive once the Screen is removed.

Gabriel Will -

I third these comments. Enter through the earpiece speaker like the guide says and chip away the glass little by little. Put tape over the section you're cracking so glass doesn't fly everywhere. Rinse and repeat with more small sections of tape. It's a pain, but after you get the edge glass off, the lcd will be loose. I tried iso, I tried heat, but nothing moved this screen. It even broke my suction cup.

Isaiah Kolesar -

Replacing the screen is pretty straight forward with the guide. I would get the Jimmy tool. This tool makes it super easy to remove the old screen.

Justin S. -

Step 5

Don't insert your pick deeper than 2 mm, as you might damage the front-facing camera.

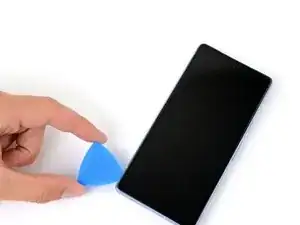

Slide your pick back and forth across the top edge of the screen to separate the adhesive.

Step 6

Don't insert your pick deeper than 3 mm, as you might damage the spacers along the right edge of the frame.
For a visual reference, you can measure 3 mm from the tip and mark your pick with a permanent marker.
Slide your pick down the right edge to separate the adhesive.

Step 7

If you plan on reusing any components on your screen, don't insert your pick deeper than 3 mm, as you might damage the LCD panel or connectors.

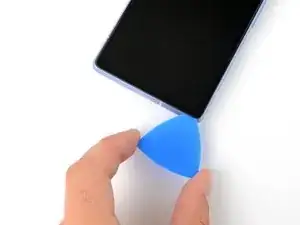

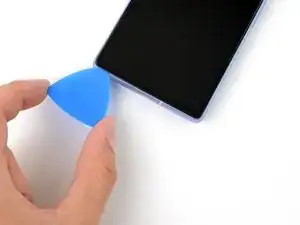

Slide your pick to the bottom left corner to separate the bottom edge adhesive.

Step 8

If you plan on reusing any components from your screen, don't insert your pick deeper than 3 mm, as you might damage the connectors.

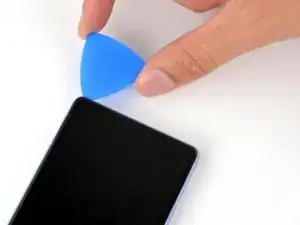

Slide your pick to the top left corner to separate the left edge adhesive.

Step 9

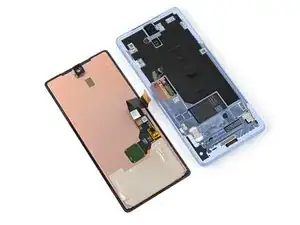

Swing the right edge of the screen open, like turning the page of a book.
Be careful not to strain the screen cable.
Lay the screen over the left edge of the frame.

You also have to deal with the square adhesive strip (the one you replace in steps 14 and 17). I ended up forcing the phone open because I was throwing away the old screen.

I'm not sure how you'd do it if you wanted to avoid damaging the screen

Parker Kincaid -

Step 10

Move the flap of graphite film away from the screen connector.

Step 11

While the Pixel 7a uses Torx Plus screws, standard Torx bits work. Make sure to apply constant, downward force to prevent stripping.

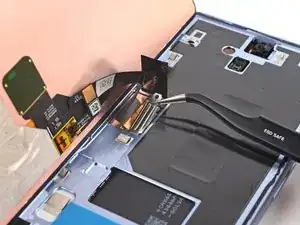

Use your T3 Torx driver to remove the single 2 mm 3IP Torx Plus screw securing the screen connector cover.
Remove the cover.

Step 12

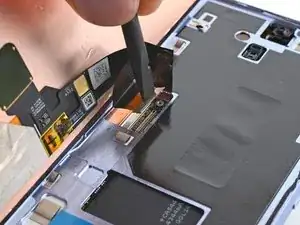

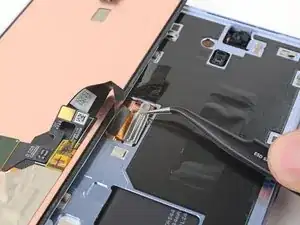

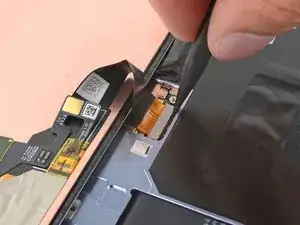

Use the point of your spudger or a fingernail to pry up and disconnect the screen press connector.
To reconnect a press connector, align it over the socket and gently press down on one side until it clicks into place, then press down on the other side. It might take a few tries to align the connector.

Step 13

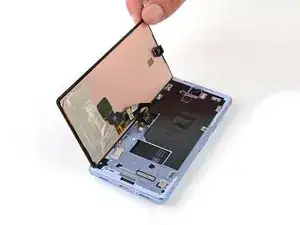

Remove the screen.

Step 14

The underside of the battery is exposed through a small cutout in the frame—be careful not to damage it with your tool.

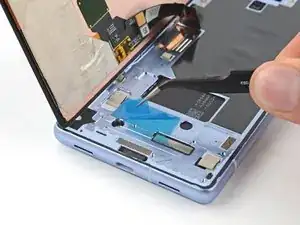

Use blunt nose tweezers or your fingers to peel and remove the square piece of adhesive near the battery cutout.

Step 15

If you're reusing your original screen, peel and remove the old adhesive from the perimeter of the screen.

Step 16

Use a pipette or syringe to apply a few drops of highly-concentrated isopropyl alcohol (over 90%) to the perimeter of the frame.
Wipe the residue away using a lint-free or microfiber cloth.
If you're reusing your screen, repeat this step along its perimeter, as well.

Step 17

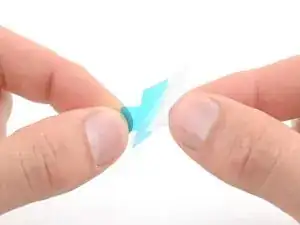

Peel the square piece of screen adhesive from its large liner.
Apply the adhesive to the frame in the same location as the old adhesive, just below the battery cutout.

Step 18

If your screen already comes with adhesive pre-installed, remove its liner and skip down five steps to continue reassembly.
Before removing any liners from the screen adhesive, hold it over the frame to make sure it's oriented correctly.
Make sure the blue adhesive liner is facing up and the tab cutout is to the left of the front-facing camera.

If you bought the "Fix Kit" version of this, the screen adhesive comes pre-installed on the replacement screen.

Parker Kincaid -

Step 19

Take your time aligning the adhesive with the frame—it's very sticky and can't be moved after you apply it.
Peel up the right half of the large adhesive liner. Don't remove the whole liner, yet.
Hold the adhesive by its short edges, with the right long edge of the liner folded back to expose the adhesive.

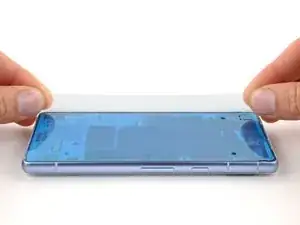

Lay the right long edge of the adhesive onto the frame.

Step 20

Slowly lay the rest of the adhesive onto the frame, peeling away the large liner as you go.

Step 21

Use the flat end of your spudger to press along the perimeter of the adhesive and secure it to the frame.

Step 22

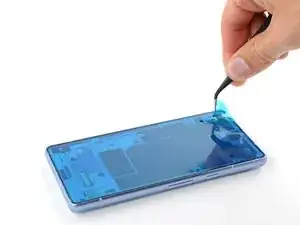

Grab the blue liner pull tab in the upper left corner.
Slowly peel and remove the liner.
If the adhesive starts to peel up with the liner, check that you’ve pushed all of it into place with your spudger. If it continues to peel up, hold it down with the point of your spudger as you go.

Step 23

Apply a suction handle to the left side of the replacement screen, with the handle facing left.
Prop up your screen on the left side of the frame.

Step 24

Connect the screen cable by aligning it over the socket and pressing on one side until it clicks into place before fully pressing it down.

Step 25

Insert the screen connector cover into its slot in the logic board.
Use your T3 Torx driver to install the 2 mm 3IP Torx Plus screw and secure the screen connector cover.

Achtung! nicht zu feste anziehen - nach fest kommt bekanntlich locker. Man kann die Schraube allerdings ordentlich festziehen.

Ich habe es allerdings zu gut gemeint und mir den Schraubenkopf abgebrochen.

Jetzt kommt mein Displaystecker dann wohl ohne Schutzabdeckung aus....

Gian-Marco -

Step 26

Peel and remove the blue liner from the square adhesive on the frame.

Step 27

Hold the screen just above the frame by the suction handle.

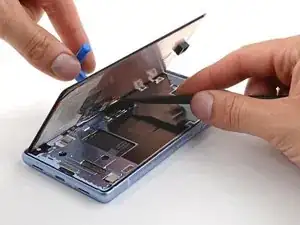

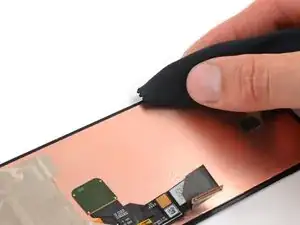

Use a spudger to fold the flap of graphite film back over the screen cable.
Press the screen into place.

Step 28

Remove the suction handle.
For a better seal, lightly warm the screen with a heated iOpener, hair dryer, heat gun, or hot plate before pressing around the perimeter.
Firmly press around the perimeter of the screen to secure it to the frame.

le joint est pré-collé sur l'écran.

christophe fresco -

Conclusion

To calibrate the display’s fingerprint reader, use Google’s Pixel Update and Software Repair tool.
