Plotting multi-edge directed graphs using pyvis in a way that shows all edges separately

Question

Note: This post is directly related to this one, except that I am looking for a solution in pyvis.

I would like to plot a directed graph with multiedges, that is, each pair of nodes is connected with two edges in opposite directions. In order to that, it is important, that the two edges do not overlap visually. When using networkx.draw() this problem can be solved by passing connectionstyle='arc3, rad = 0.1' to nx.draw() as described here. However, I am using for a solution in pyvis.

Example using networkx.draw():

import networkx
from pyvis.network import Network

# create a graph
G = nx.MultiDiGraph()
G.add_edges_from([
    (1, 2),
    (2, 3),
    (3, 2),
    (2, 1),
])


# draw with networkx using the proposed solution

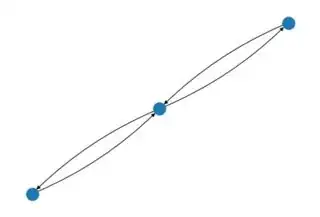

nx.draw(G, connectionstyle='arc3, rad = 0.1')

# This is how the graph currently looks with pyvis
nt = Network('500px', '500px',directed=True)
nt.from_nx(G)
nt.show('nx.html')

Answer 1

What version are you using? I just tried running your code:

import networkx as nx
from pyvis.network import Network

# create a graph
G = nx.MultiDiGraph()
G.add_edges_from([
    (1, 2),
    (2, 3),
    (3, 2),
    (2, 1),
])

# This is how the graph currently looks with pyvis
nt = Network('500px', '500px',directed=True)
nt.from_nx(G)
nt.show('nx.html')

and I obtain the result you are looking for:

You can find the output HTML here: https://pastecode.io/s/anav9333

I am using version pyvis=0.3.0
