Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
If you are having issues with your Dell Latitude 3189 and need additional help, here is the troubleshooting page.
Background
Released as part of Dell's education-focused lineup, the Dell Latitude 3189 was unveiled in March 2017 as a 2-in-1 convertible laptop. It was designed for educational use. The starting price was $579 in 2017.
The Dell Latitude 3189 is a part of Dell’s "Latitude" business-oriented line, aimed at corporate enterprises, healthcare, government, and education markets. Aimed for institutions to mass buy a fleet of laptops at the same time. It’s a lower-end processor that is part of Intel’s Celeron and Pentium lineup of processors aimed toward power-efficient and price-conscious devices. This particular model of laptop is aimed at the education market. With its 360 degree hinge and touchscreen assisting in the learning environment.
The Latitude 3189 2-in-1 was part of Dell's broader "Latitude" series, which encompasses a range of business-oriented laptops and convertibles. It succeeded the earlier Latitude 3150 series, offering improved performance and versatility in a similar form factor. The 3180 series was later superseded by the 3190 series released in 2021.
Identification
One of the most noticeable characteristics is its 2-in-1 convertible design, allowing the screen to rotate 360 degrees for seamless transformation between laptop and tablet modes. The device often features an 11.6-inch touchscreen display with HD resolution. The name and model number of the laptop will be written on the bottom of the laptop. You can go to Dell’s support website and enter the service tag to find all information about the laptop.
Technical Specifications
The technical specifications of the Dell Latitude 3189 may vary depending on the specific configuration and model, but here are the typical specifications for this laptop:
- Processor: Intel Celeron N3350 or Intel Pentium N4200
- Memory: 4GB or 8GB LPDDR3

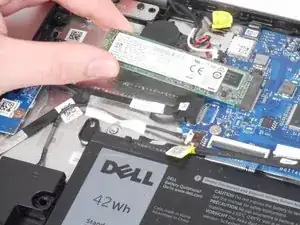

- Storage: 128GB M.2 SSD
- Display: 11.6-inch HD (1366 x 768) anti-glare LED-backlit touchscreen display
- Graphics: Intel HD Graphics 500 or Intel HD Graphics 505
- Operating System: Windows 10 Pro or Home
- Connectivity: Wi-Fi 802.11ac, Bluetooth 4.2
- Ports: 2 x USB 3.1 Gen 1, HDMI, microSD card reader, headphone/microphone jack
- Battery: 42 Wh
- Dimensions: 11.96 x 8.18 x 0.81 inches (303.8 x 207.9 x 20.8 mm)
- Weight: Starting at 3.17 lbs (1.44 kg)
Additional Information
Device Documentation from Dell's Website
